You've typed the perfect phrase for a shirt decal — a name arched over a graphic, or "est. 2026" curved under a family monogram — and now you're hunting through Cricut Design Space for the button that bends it. It exists, it works well, and it's genuinely easy once you find it: the Curve tool is a slider that turns straight text into an arch or a full circle in about three clicks.
The catch is what happens around that slider. The Curve button goes gray for reasons that aren't obvious (multi-line text, welded text, Android). It only bends text along an arc or circle — so wavy lettering, S-curves, and text along a custom path aren't possible in Design Space at all. And crafters who want those shapes usually get routed to a desktop vector editor, which is overkill for the job.
This guide covers all of it: the native Curve tool step by step, how to close text into a full circle badge, why the tool gray-outs happen, the honest limits of curving in Design Space, and a free browser-based workaround that gets any curved shape onto your mat — including waves and spirals that Design Space can't natively draw.
TL;DR
- The Curve tool is a slider, not a drawing tool. Select single-line, unwelded text, then drag the Curve slider in the top toolbar: right = curve down, left = curve up. The number is the diameter of the circle the text wraps around.
- Full circles need two adjustments. Curve until the text ends nearly meet, then tune Letter Space to close the ring — and Weld after curving if you're using a script font.
- A grayed-out Curve button has three usual causes: multi-line text, text that's been welded/grouped/attached, or using the Android app (where the tool doesn't exist).
- Design Space only does arcs and circles. Wavy text, S-curves, spirals, hearts, and freehand paths require an external tool — CurvedTextMaker does them free in your browser, then you upload the transparent PNG into Design Space.
Does Cricut Design Space have a curve tool?
Yes — but it doesn't look like the curve tools in photo editors. There's no arc handle on the text box and no "bend" effect menu. Instead, Cricut's official documentation describes a single Curve field that appears in the toolbar at the top of the Canvas when a text layer is selected (in recent Design Space updates it sits with the text editing options, which is why many crafters report it "moved").
Three things make it different from curving text in, say, Photoshop or Canva:
- It's a diameter, not a warp percentage. The number in the Curve field sets the size of the imaginary circle your text wraps around. Smaller number, tighter curve.
- The text stays live. Curved text in Design Space remains an editable text layer — you can change the wording, font, or curve value at any time. (Unlike GIMP's Text along Path, which converts text into a non-editable path.)
- It only bends on one axis. Arcs up, arcs down, and full circles. That's the entire vocabulary.
How to curve text in Cricut Design Space: step by step
- Add a text box. Click Text on the left panel, type your phrase, and pick your font while the box is selected.
- Keep it to one line. The Curve tool won't activate on a text box with multiple lines — split each line into its own box (more on that below).
- Select the text and find the Curve field. With the text box selected on the Canvas, look at the toolbar across the top for the Curve option.
- Drag the slider. Drag right to curve the text downward (a "smile"), left to curve upward (a "frown"). Watch the number in the field as you drag — that's your curve diameter.
- Fine-tune with Letter Space. Curving squeezes or stretches the visual rhythm of the letters. Adjust Letter Space in the same toolbar until the spacing looks even along the whole arc.
- Size and position. Curve first, then resize and place the text over your design.
💡 Pro tip: Need text curved under a logo so it reads left-to-right (not upside down)? Curve it downward, then flip the text box vertically using Flip > Flip Vertical. The bottom-of-badge text on circular logos is made this way — it's exactly what a circle text generator automates with separate top and bottom arcs.
How to curve text into a full circle in Cricut Design Space
Badge-style text — a family name around the top of a ring, a date around the bottom — is the most common curved-text project for cutting machines. In Design Space:
- Create two single-line text boxes — one for the top text, one for the bottom.
- Curve the top text downward with the slider until the ends nearly meet.
- Curve the bottom text downward too, then Flip > Flip Vertical so it reads correctly at the bottom of the ring. (Flipping before curving also works — pick one order and stick with it.)
- Close the circle with Letter Space. Increase the letter spacing until the text wraps all the way around with no visible gap; nudge the Curve value to keep the ring round.
- Weld script fonts — last. If your font is a connected script, select the curved text and click Weld. This merges the letters into one clean cut path. Do this after curving, because the Curve tool no longer works on welded text.
📌 Note: Welding is permanent for editing purposes — keep a copy of the unwelded text box on a hidden layer in case you need to fix a typo later. Nothing ruins a 20-minute mat setup like re-typing "Congratulations Gradf."
Why is the Curve tool grayed out or missing?
This is the single most common curved-text complaint about Design Space, and it almost always comes down to one of three causes:
| Cause | What's happening | Fix |
|---|---|---|
| Multi-line text | Your text box contains a line break. Curve only works on single-line text. | Delete the line break, or select each line and cut it into its own text box, then curve each separately. |
| Welded / grouped / attached text | Once text is welded, ungrouped to letters, grouped, or attached, it's no longer live text. | Curve before you weld. If it's already welded, re-type the text and curve the fresh box. |
| Android app | The Curve tool isn't available on Android — only desktop and iOS. | Curve the text on a computer, or make it in a browser tool and upload the design (next section). |
One more gotcha: if the Curve number jumps to an unexpected value the first time you type into the field, you're not imagining it — a Design Space update fixed a bug where manually entered curve values didn't stick on first use, so make sure your app is current.
The honest limits of curving text in Design Space
For arcs and circles, the native Curve tool is the best option — it's free, it's right there, and the output cuts cleanly because it stays as vector text. But the tool has a hard ceiling:
- Arcs and circles only. No wavy text, no S-curves, no text spiraling inward, no text along a heart, no freehand paths. The Cricut help center documents exactly one curvature control.
- One curve per text box. A phrase that dips and rises (like a gentle wave) would need to be faked with multiple boxes — and matching the seams by eye is miserable.
- No bottom-arc logic. Circular badge text with a readable bottom line requires the curve-flip-flip dance from the section above, done manually.
Crafters who hit these limits usually get pointed toward Inkscape for true text-on-path control. That works, but it's a heavyweight detour: install a vector editor, learn Bézier handles, convert text to a path, export SVG, import to Design Space. When the actual job is "bend this phrase into a shape and get it onto my mat," a browser tool does it in a fraction of the time.
Free alternative: any curved shape → Design Space

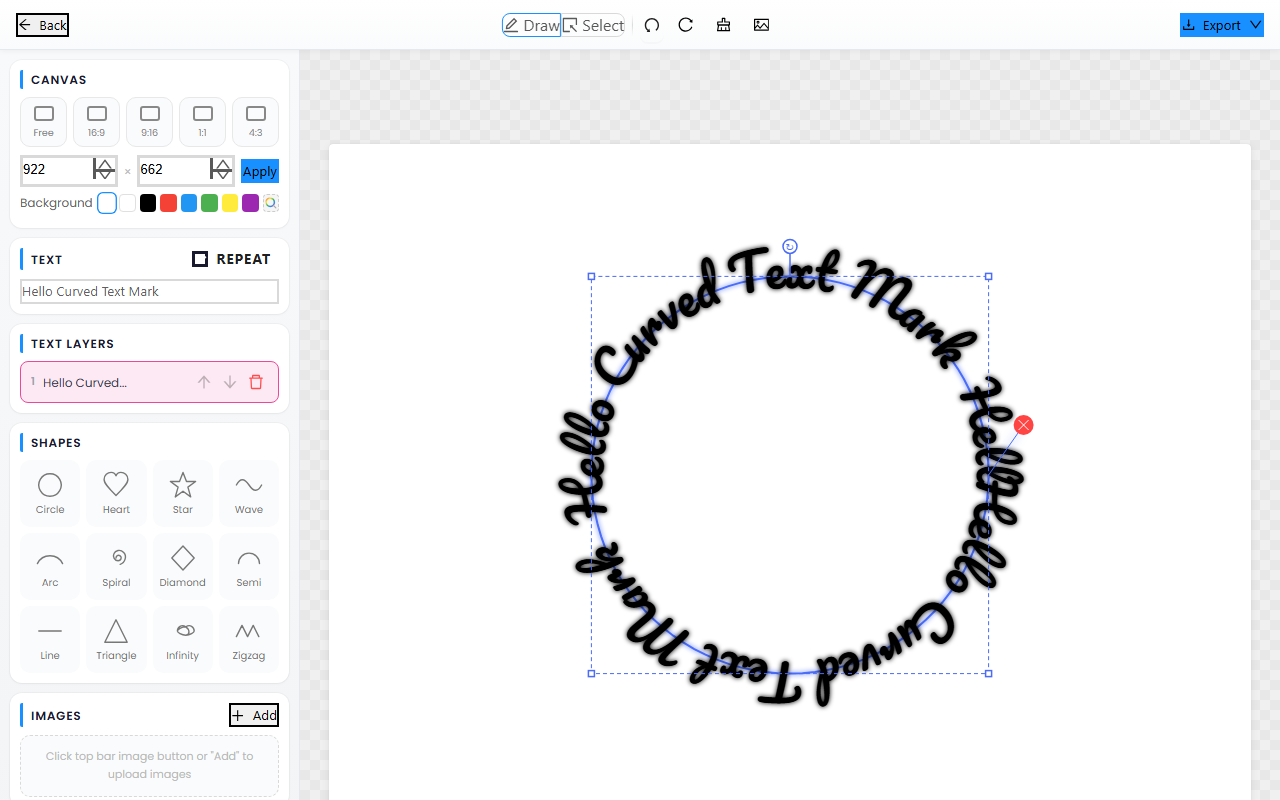

CurvedTextMaker is a free online curved text generator — no signup, no install — built around exactly the shapes Design Space can't natively draw:

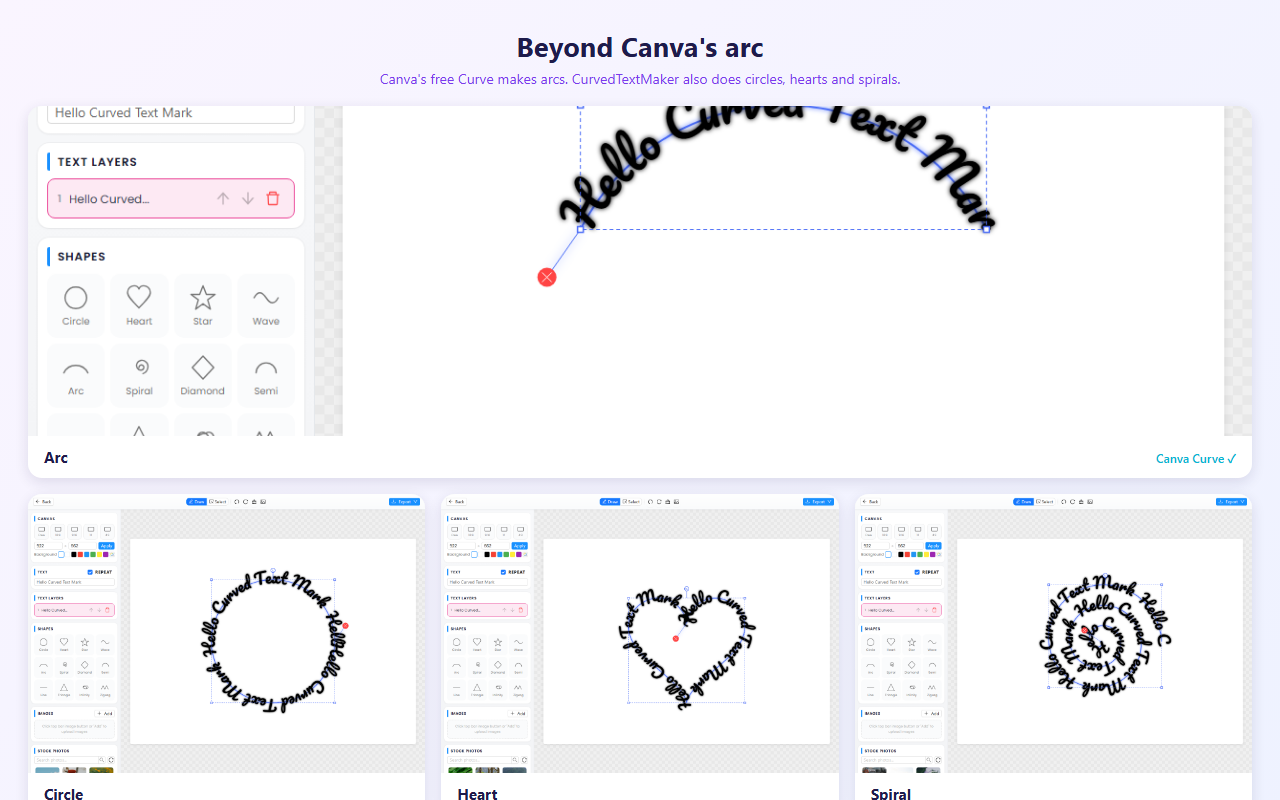

- Preset shapes for arc, circle, wave, spiral, and heart text.
- A freehand path tool: sketch any S-curve or custom curve, and your text follows it live as you type.
- Transparent PNG export, which is what makes the Design Space handoff painless.
Getting the design into Design Space
- Make the design. Open CurvedTextMaker, pick your shape (or draw a path), type your text, and export a transparent PNG.
- Upload in Design Space. Click Upload > Upload Image and select your PNG.
- Skip the cleanup struggle. Because the background is already transparent, there's nothing to erase — the preview comes in clean.
- Choose your save type:
- Cut image — Design Space traces the letter outlines into cut lines. Best for vinyl and HTV. Use bold, clean fonts for the crispest trace.
- Print Then Cut image — keeps the full-color design and prints it, with a cut outline around the shape. Best for stickers, mugs, and full-color decals.
- Insert and size it on your Canvas.
⚠️ Honest caveat: for simple arcs, native Design Space text will always cut a little cleaner than a traced PNG, because it stays true vector text. Use the upload workflow for the shapes Design Space can't draw at all — waves, spirals, custom paths — or for Print Then Cut projects, where the PNG is printed rather than traced.
Which approach should you use?
| Method | Curves supported | Cost | Cut output | Best for |
|---|---|---|---|---|
| Design Space Curve tool | Arcs + full circles | Free | True vector text — cleanest cut | Simple arched or circular vinyl lettering |
| CurvedTextMaker → PNG upload | Any path: waves, S-curves, spirals, hearts, freehand | Free, no signup | Traced cut lines or Print Then Cut | Wavy/custom shapes, stickers, mugs, full-color work |
| Inkscape → SVG import | Any path | Free | True vector SVG | Complex multi-layer vector compositions |
Best fonts for curved text in Cricut Design Space
The font matters more when text is curved, because cutting exaggerates every flaw:
- Script and cursive fonts look great on shirts and tumblers — but always Weld after curving, or the machine cuts each letter's entry stroke separately and the "connected" look falls apart on the mat.
- Bold sans-serifs (think the classics in Design Space's free font list) are the safest choice for small decals under ~2 inches. Thin strokes and delicate serifs turn into weeding nightmares at small sizes.
- Single-line / writing-style fonts are the ones to reach for when the Cricut holds a pen instead of a blade — greetings cards, envelope addressing, gift tags. They curve the same way; skip the Weld unless letters actually overlap.
You can test any font's curve behavior in two seconds in a curved text generator before committing it to a mat — much cheaper than discovering the kerning falls apart after the vinyl is cut.
Project ideas that start with curved text
Once the curve's in your toolkit, the standard lineup opens up: arched family names on HTV shirts, circular monogram badges on tote bags, "est." dates under logos for anniversary gifts, wavy sayings on stencil projects, and spiral text ornaments that use the whole mat. Print Then Cut stickers with rainbow or wave text are also a low-cost entry — the full-color PNG workflow above handles them end to end.
FAQ
How do I curve text in Cricut Design Space?
Select your text box, open the Curve field in the top toolbar, and drag the slider — right to bend the text downward, left to bend it upward. The number represents the diameter of the imaginary circle the text follows; a smaller value gives a tighter curve. The text stays fully editable after curving.
Why is the Curve tool grayed out in Cricut Design Space?
Almost always one of three things: your text box has multiple lines (curve works on single-line text only — split the lines into separate boxes), the text has been welded, ungrouped, grouped, or attached (curve needs live editable text), or you're on the Android app, where the Curve tool doesn't exist.
Can you curve text in the Cricut Design Space mobile app?
On iOS, yes — the Curve control appears as a slider with + and − buttons. On Android, the Curve tool isn't available at all, so curve the text on desktop first or create it in a free browser-based tool and upload the finished design.
How do I curve text into a full circle in Cricut Design Space?
Drag the Curve slider until the ends of the text nearly meet, then increase Letter Space until the text wraps all the way around the ring with no gap. For badge text that reads correctly at the bottom, curve the second line and apply Flip > Flip Vertical. Weld script fonts only after curving.
Can Cricut Design Space curve text into a wave or custom shape?
No — the Curve tool produces arcs and circles only. For wavy text, S-curves, spirals, hearts, or text along a custom path, create the design in a free curved text generator, export a transparent PNG, and upload it to Design Space as a cut image or Print Then Cut image.
How do I get curved text from CurvedTextMaker into Design Space?
Export a transparent PNG from CurvedTextMaker, then in Design Space choose Upload > Upload Image, select the file, and save it as a Cut image (the letters are traced into cut lines for vinyl) or a Print Then Cut image (for stickers and full-color projects). The transparent background means there's no cleanup step.
Start curving
For arcs and circles, the Curve tool inside Design Space is all you need. For everything else — waves, spirals, hearts, and any path you can sketch — create curved text for free in your browser, export a transparent PNG, and get it onto your mat in under a minute. No install, no signup.
